Curved & Textured Glass: The Specialist Tools You Need for Non-Flat Surfaces

Modern glazing projects increasingly involve glass that isn't flat. From curved architectural facades to decorative textured panels, glaziers are regularly working with surfaces that standard suction cups simply aren't designed for. Using the wrong tool on non-flat glass reduces grip, increases the risk of breakage, and puts your team in an unsafe position.

Here's a guide to the key tools for handling curved and textured glass, and when to use them.

Why Standard Cups Don't Work on Non-Flat Surfaces

A standard flat suction cup relies on an airtight seal across a smooth, even surface. On curved glass, the rigid cup can't follow the contour, leaving gaps at the edges that break the vacuum. On textured glass - ribbed, sandblasted, patterned or frosted - the surface interruptions prevent full contact, which significantly reduces holding capacity. Either way, the result is an unreliable grip that you can't safely work with.

Curved Suction Cups

Designed specifically for curved surfaces, these cups use a flexible pad that conforms to the contour of the glass rather than maintaining a fixed profile. This allows a consistent vacuum seal to be achieved even across a curved surface.

Key considerations:

•       Match the cup to the radius of curvature - cups are rated for a specific range

•       Use multiple cups on heavier or larger panels to distribute the load

•       Single and double-pad options are available depending on panel size and stability requirements

These are a practical choice for curved balustrades, arched panels, structural glazing, and specialist shopfitting work.

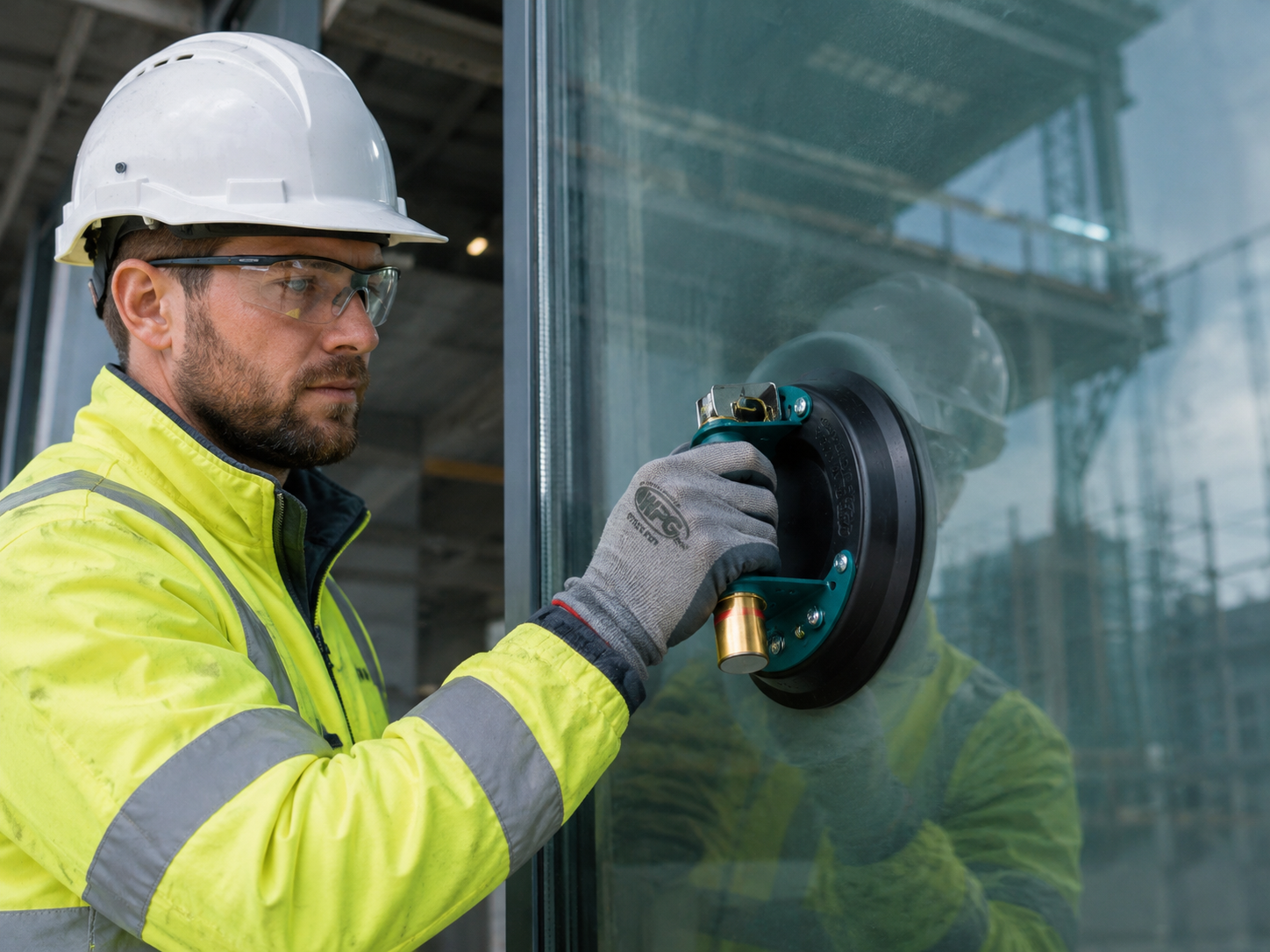

Vacuum Pump Suction Cups

For heavier or larger curved panels where a stronger, more consistent vacuum is needed, vacuum pump suction cups offer significantly greater holding capacity than standard hand cups. The pump compensates for the reduced contact area that comes with curved surfaces, providing a more reliable grip under load.

Best suited for:

•       Structural curved panels

•       Larger format curved glass

•       Applications where slip risk needs to be minimised

Textured Suction Cups

Textured glass requires a cup with a softer, more compliant pad material that can deform slightly to fill the gaps created by the surface texture. Rigid rubber pads cannot achieve this. Foam-backed or multi-layer pads are designed to mould to surface irregularities and maintain a workable seal.

Important: holding capacity on textured surfaces will be lower than on smooth glass. Factor this in when deciding how many cups to use and how to position them.

General Guidance for Non-Flat Glass Handling

•       Always verify the seal before committing to a lift - listen for air loss and check any vacuum indicator

•       Clean the glass surface before applying cups where possible - dust caught in texture or along a curve will reduce seal quality

•       Use more cups than you would on standard flat glass to build in an adequate safety margin

•       Never apply the full rated capacity of a cup to non-flat surfaces - treat stated figures as a starting point and work conservatively

•       Work with a second person where possible, particularly on curved panels that are harder to predict

Choosing the Right Cup: Quick Reference

If you're working with non-standard glass and unsure which tool is right for the job, our team is happy to advise. Browse our full range here.
